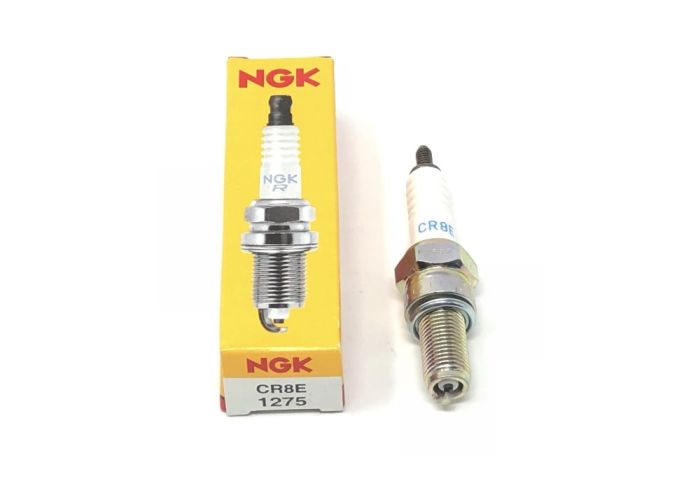

NGK standard plugs are constructed for longer life and optimum performance.
Features:
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent Flashover
Pure alumina silicate ceramic Insulator, provides superior strength and better heat transfer
Copper Core aids in heat removal
Triple seals prevent leakage
Note: ALL PLUGS ARE SOLD PER UNIT
Shell
Thread Size: 10mm
Thread Pitch: 1.0mm
Seat Type: Gasket
Resistor Value: 5K Ohm
Reach: 19mm (3/4")
Hex Size: 5/8" (16mm)
Terminal Type: Threaded Stud
Overall Height: ISO
Gap: .031" (0.8mm)
Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Non-Projected
Ground Electrode
Material: Nickel
Type: Standard
Quantity: 1
