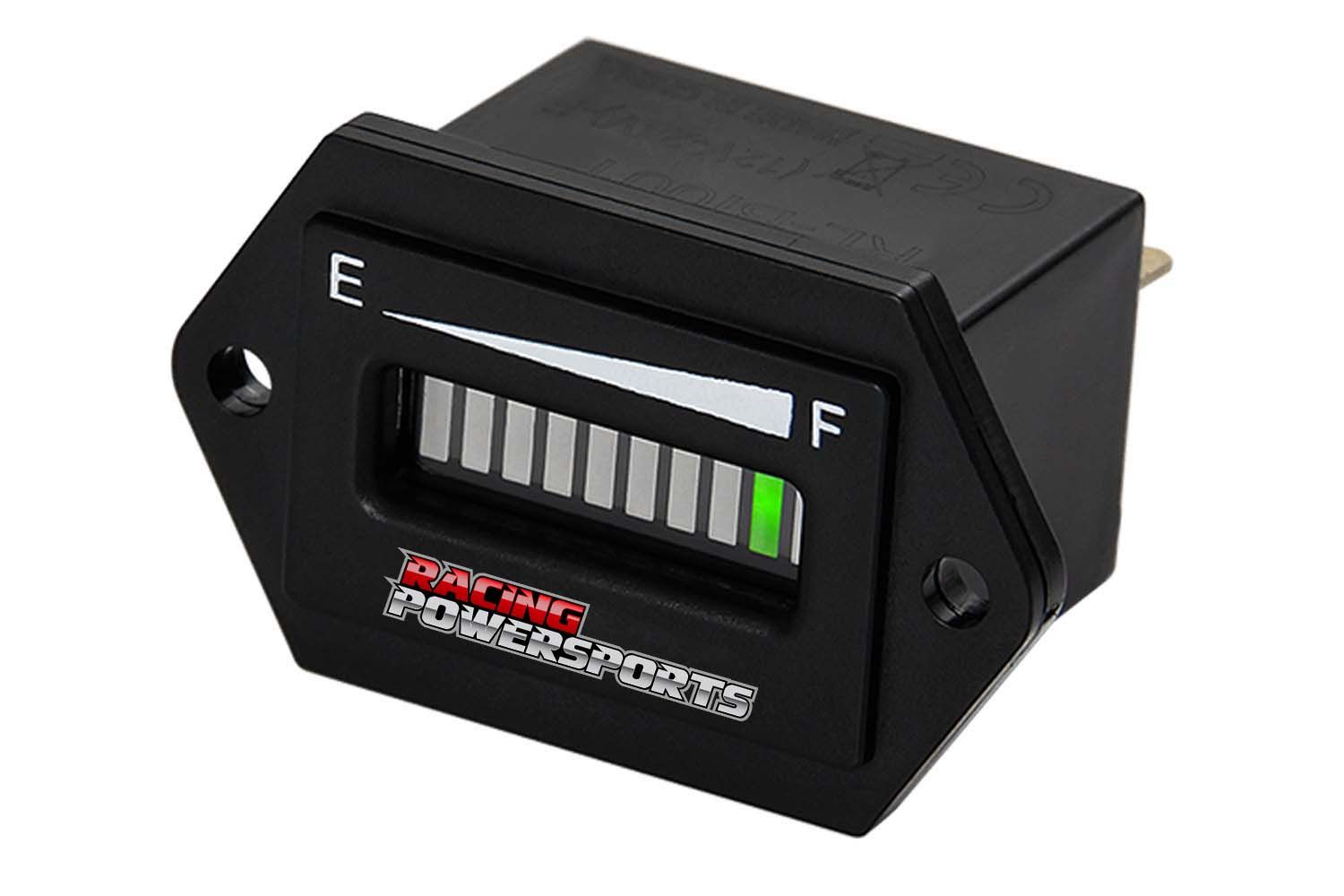

The Racingpowersports RPS-BI48V001 battery indicator is a kind of instrument that displays the remaining power by monitoring the voltage changes of the equipment.
It's suitable for most lead-acid batteries.
Voltage paremeters also can be customized according to the user's battery characteristics.
The installation dimensions of three products are basically the same,among them:
The waterproof of RPS-BI48V001 can reach to IP68.
Color: Black
FEATURES
- Battery indicator voltage range ---- 48V
- Battery status indicator ----1 red, 2 yellow, 7 green
- Memory ---- the memory option can call up the last power
- Protection ---- Automatic identification of the battery is not properly charged
- Two connection methods ---- key switch/no key switch
- Waterproof rate: IP65
- The charge status of the battery is displayed sequentially from full to empty.
INSTALLATION
- Snap-in installation，save time and effort.
- Three pins ---- + / - / C.
APPLICATION
- DC powered devices,such as: Golf carts, forklifts, floor care equipment, stabilized power supplies and etc.
Can not be directly used for other kinds of batteries like AGM, GEL, lithium etc.
Product model RPS-B48V001
Product code XBI001AC600A
Product name Battery Indicator
Battery type Lead-acid battery
Voltage range DC 48V
LED display mode 10 Segment LED Bar Graph
LED color 1Red, 2 Yellow, 7 Green
Display mode Single display
Parameter Setting Cannot be set
Discharge mode Gear down,default:155s
Charging mode Gear up,default:200s
Voltage display accuracy ±0.5%
Operating voltage DC 9-85V
Working current ≤100mA
Working temperature -20℃ to +65℃
Display window size (Visible) 25.5mm×7.6mm
Product Size 53mm×32mm×38.1mm
Mounting dimensions 36.5mm×24.5mm
Package size 62mm×50mm×41mm
Housing material ABS
Waterproof rate IP65
Product weight About 35.7g
Package mode White box
