Adjustments:
Threaded Spring Preload: Lets the rider fine-tune the initial force applied on the springs and precisely balance the weight distribution across the front and rear wheels while setting up the ride height (ground or chassis clearance) and to lower or raise the vehicle to adapt to various situations or to suit your personal preference. Turn the preload adjustment ring clockwise (from top of the shock) to increase preload and raise the vehicle or turn counter-clockwise to reduce preload and lower the vehicle.

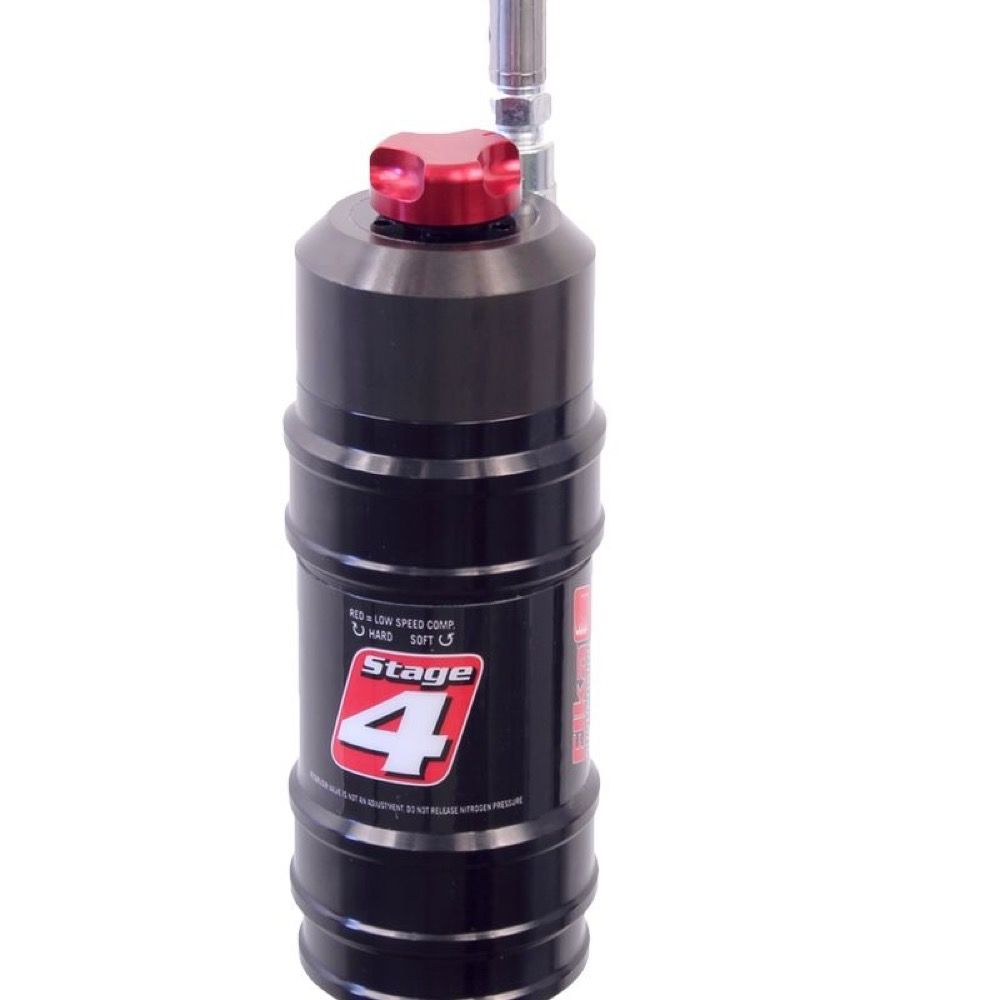

Low-Speed Compression: Allows fine-tuning of the damping resistance when the shock is being compressed slowly. This adjustment controls body roll when cornering rear-end squatting under hard acceleration front-end diving when braking riding over whoops at moderate speed undulations and elevation changes in the terrain. Turn the red knob clockwise to increase damping resistance therefore making the suspension stiffer or turn counter-clockwise to reduce damping resistance therefore making the suspension softer.
Rebound: Controls the speed at which the shock absorber returns to its fully extended position after being compressed from an impact keeping the wheels on the ground for maximum traction and reducing the bucking effect caused by the spring pressure pushing back after an impact. Turn the adjuster clockwise to slow down the rebound or turn counter-clockwise to speed up the rebound.
Features:
36mm inside diameter hard anodized aluminum body with integrated PTFE coating mated to low-friction internal components
Sturdy 16mm induction hardened shafts
Multi-seal low-friction seal head design that prevents debris and water infiltration therefore extending the shock life in harsh conditions
Proprietary oil blend with ultra-low friction light viscosity grade which is ultra-resistant to high operating temperatures
High-pressure nitrogen valve core design rated at over 800 psi to prevent nitrogen leaks from peak pressure generated upon major hits.
Fitment: HONDA TRX450R 2006-2013
Position: FRONT & REAR
Product: STAGE 4
Body: F: 36mm ALUMINUM / R: 46mm ALUMINUM
Configuration: RESERVOIR
Adjustments: PRE REB LSC
Part Number: 10804+10807
Sold As: KIT
