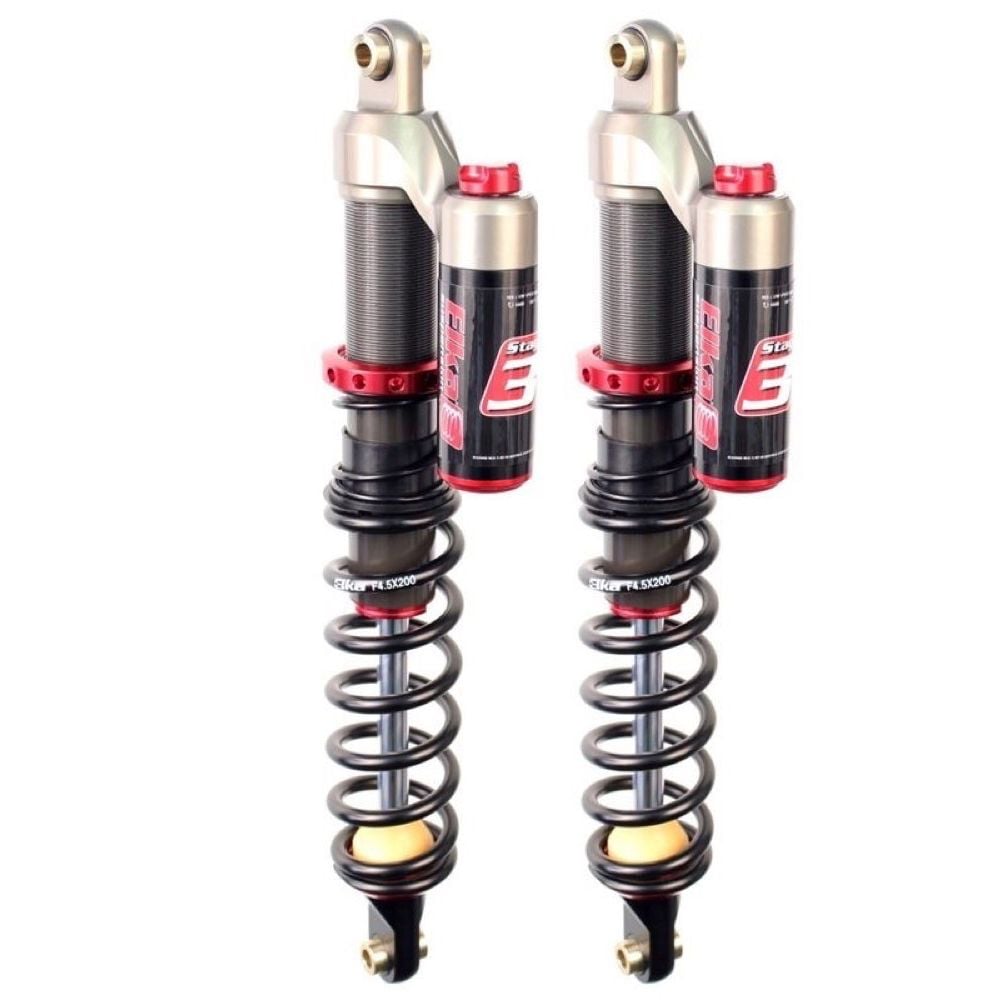

The ELKA Stage 3 ATV FRONT shocks for the XTREME TYPHOON All Years are a simpler to use version of the top-end ELKA Stage 5 shocks with which it shares most of the same components. This model features a single low-speed compression damping adjustment combined to our unique factory-set internal high-speed compression blow-off circuit to relieve peak pressure upon impacts to achieve high performance with factory-set damping resistance. Highly improve the handling of your XTREME TYPHOON All Years with the ELKA Stage 3 custom built shocks!
Advantages: Provides improved comfort and control Major performance improvement over stock suspension Single easy to use compression adjustment Ultra-lightweight design all components are optimized for weight savings Unique factory-set internal high-speed compression blow-off circuit to relieve peak pressure upon impacts High-flow hydraulic circuits and compression regulator with equivalent flow capacity upon compression and rebound stroke (1:1 ratio) External reservoir to help prevent fading (piggyback on most vehicle models remote reservoir on others) Rider-specific spring setup optimized for customer's intended use
ELKA Shocks custom built for your XTREME TYPHOON All Years: Custom setup includes: Make/Model/Year Riders Weight Type of Riding (Recreational Trails MX Racing XC Racing Desert Dunes or Flat Track Racing) A-Arms/Swingarm Setup and Tires. Basically each ELKA Shock is individually designed for your exact application. Once we receive your order we will contact you to gather all required information for the Setup!
If you require faster shipment have any kind of questions or wish to inquire about other international shipping options please contact us!

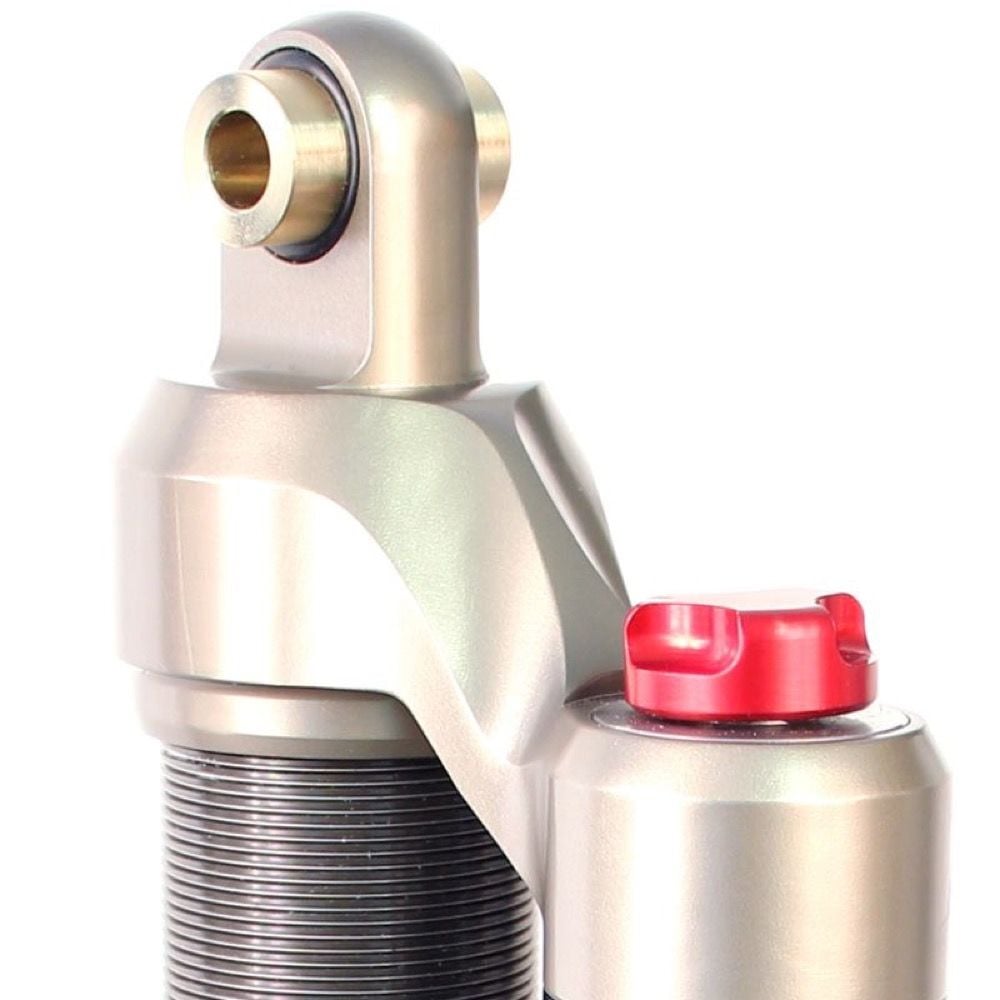

Adjustments: Threaded Spring Preload: Lets the rider fine-tune the initial force applied on the springs and precisely balance the weight distribution across the front and rear wheels while setting up the ride height (ground or chassis clearance) and to lower or raise the vehicle to adapt to various situations or to suit your personal preference. Turn the preload adjustment ring clockwise (from top of the shock) to increase preload and raise the vehicle or turn counter-clockwise to reduce preload and lower the vehicle. Low-Speed Compression: Allows fine-tuning of the damping resistance when the shock is being compressed slowly. This adjustment controls body roll when cornering rear-end squatting under hard acceleration front-end diving when braking riding over whoops at moderate speed undulations and elevation changes in the terrain. Turn the red knob clockwise to increase damping resistance therefore making the suspension stiffer or turn counter-clockwise to reduce damping resistance therefore making the suspension softer.
Features: Hard anodized aluminum body with integrated PTFE coating mated to low-friction internal components Sturdy 16mm induction hardened shafts Multi-seal low-friction seal head design that prevents debris and water infiltration therefore extending the shock life in harsh conditions Proprietary oil blend with ultra-low friction light viscosity grade which is ultra-resistant to high operating temperatures High-pressure nitrogen valve core design rated at over 800 psi to prevent nitrogen leaks from peak pressure generated upon major hits.
Fitment: XTREME TYPHOON All Years Position: FRONT Product: STAGE 3 Body: 36mm ALUMINUM Configuration: RESERVOIR Adjustments: PRE LSC Part Number: 11237 Sold As: PAIR
